Engineering the Amplifier Cascade for 1.8 GHz Extended Spectrum DOCSIS

By Carlton Casey, Sr. Sales Engineer, AOI

For cable operators moving to 1.8 GHz Extended Spectrum DOCSIS and part of a DOCSIS 4.0 upgrade, replacing the amplifier is only one part of it. The harder challenge is making sure the entire amplifier cascade delivers the optimum balance between RF operation and dataflow performance across this much wider bandwidth.

That becomes more difficult as downstream spectrum extends to 1794 MHz. Coaxial loss increases with frequency, output tilt becomes steeper, and the highest-frequency carriers have less margin for error. A small alignment problem at one active can affect every active downstream, making cascade-wide performance increasingly important. The amount of RF power carried within the spectrum must be carefully balanced to allow optimal modulation error ratio (MER) and digital quality index (DQI) performance along with the greatest RF spectral response.

Why Small Errors Matter More at 1.8 GHz
Higher-frequency signals experience varying attenuation as they travel through coax due to temperature changes. Each amplifier must restore the level and tilt expected by the network design, with the upper end of the spectrum requiring the most compensation.  Adversely impacting the automatic level and slope control (ALSC) performance across a cascade of amplifiers has a compounding impact on network performance.

If the downstream alignment of each amplifier in the cascade is off target, the next amplifier receives a spectral profile that already differs from the design assumption. These deviations can compound downstream error, leaving the highest-frequency carriers with less margin by the end of the cascade.

This is why 1.8 GHz network performance must be evaluated at the last active, not simply at each individual amplifier. Cascade-wide RF performance ultimately determines how effectively operators can use the additional spectrum.

Designing Around the Existing Plant
Moving to 1.8 GHz supports a graceful migration allowing the operator to create downstream profiles adjusting to increases in plant operational frequency.  SCTE 279 compliance supports the practical requirements of upgrading existing HFC networks, including high-gain single- and multi-output amplifiers for legacy locations and lower-gain booster amplifiers for longer spans.

The choice starts with the plant design. Expected coax and passive losses determine whether a replacement amplifier can close a span or whether additional gain is needed. Field conditions then identify exceptions where aging coax, unexpected loss or previous plant changes have pushed a span outside the expected budget.

This approach allows operators to preserve existing locations where practical while concentrating field resources on the spans that require remediation.

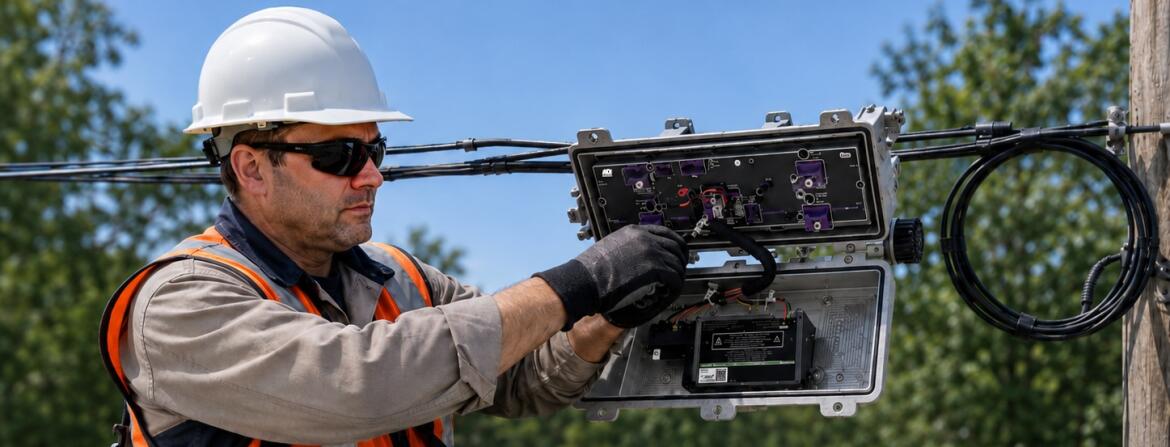

Repeatable Amplifier Alignment at 1.8 GHz
Level and tilt control are not new to HFC networks. What changes at 1.8 GHz is the tolerance for variation.

As the spectrum widens, differences between amplifier settings become more consequential downstream. ALSC combined with auto-alignment allow each active to generate the intended output profile more consistently than traditional manual adjustment alone.

That consistency becomes increasingly important when an upgrade involves thousands of actives. Repeatable alignment helps maintain RF performance across the network, rather than introducing variations from one amplifier to the next.

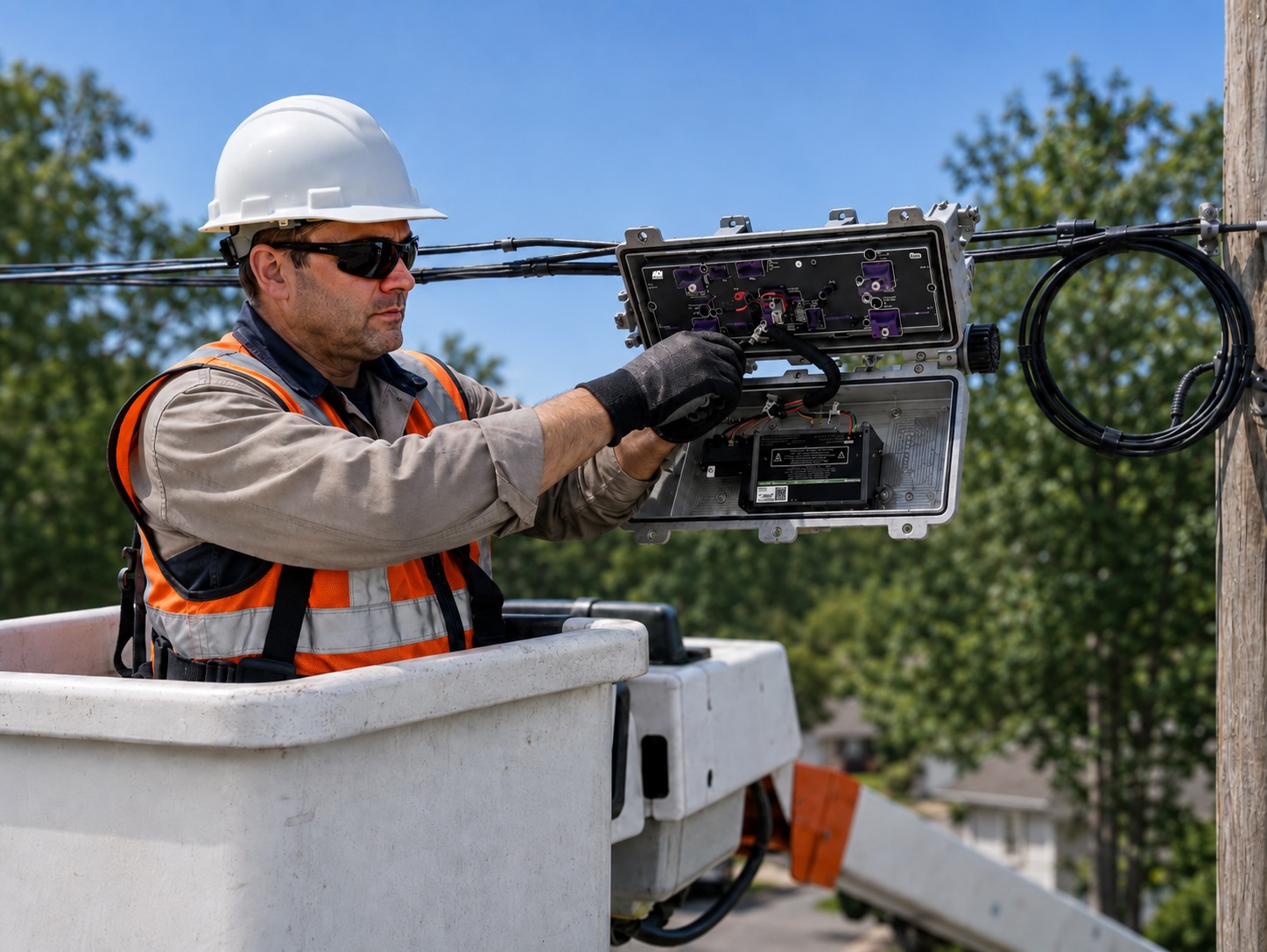

Commissioning Is Only the Beginning
The RF conditions measured at turn-up will not remain static. Temperature changes, component aging, maintenance activity, and later plant modifications can all move an amplifier away from its original operating point.

At 1.8 GHz, that drift can propagate bi-directionally just like alignment errors during commissioning. Maintaining the cascade also requires visibility long after the upgrade crews have left.

AOI’s QuantumLink™ remote management platform gives network teams visibility into deployed amplifier conditions and operating parameters, helping them identify devices that are moving away from expected performance without first dispatching a technician. Remote visibility turns alignment from a one-time commissioning task into an operating condition that can be monitored over the life of the network.

Thinking Beyond the Amplifier
Extended Spectrum DOCSIS makes significantly more capacity available over existing HFC infrastructure, but installing a 1.8 GHz amplifier does not guarantee that capacity will reach the end of the cascade.

Operators need design spans that close, maintain the intended level and tilt from active to active, and identify when those conditions begin to change. The amplifier enables 1.8 GHz, and the cascade determines how much of it the network can use.
